Model & Capacity of the Extruded Equipment
| Model | Qty. | Function | Size of extrusion barrel(mm) | Outlet size of compression machine(mm) | Size of extruded rod(mm) | Weight of Aluminum bar |
| 630T | 2 | Forward single action extrusion | Ф95*500 | Ф130*150 | Ф90*450 | 6.8KGS |
| 1000T | 1 | Forward single action extrusion | Ф132*600 | Ф150*180 | Ф127*550 | 17.8KGS |
| 1350T | 1 | Forward & reverse double -acting extrusion | Ф155*650 | Ф180*200 | Ф150*600 | 26KGS |
| 2500T | 1 | Forward & reverse double -acting extrusion | Ф236*950 | Ф310*370 | Ф229*900 | 93KGS |
| 3600T | 1 | Forward double -acting extrusion | Ф320*1200 | Ф400*520 | Ф310*(550-1100),Ф280*(550-1100) | 112KGS-224KGS |
| Auxiliary equipment: 1 set 7m aging furnace and 1 set 14m aging furnace | ||||||
Our Workshop
Research Center

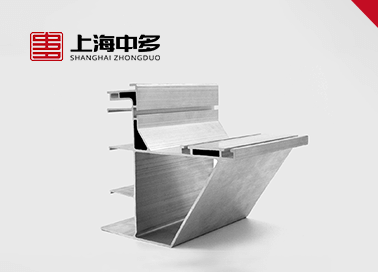

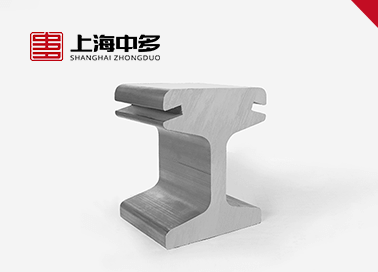

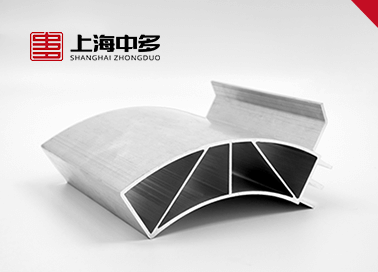

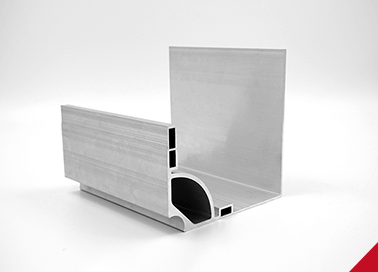

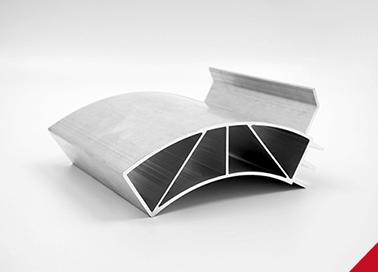

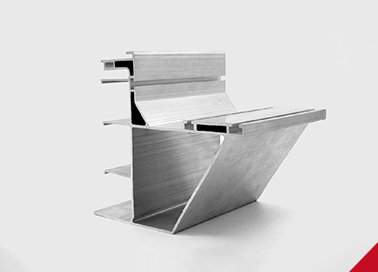

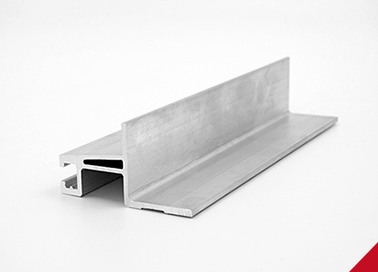

Finished Products
What is Aluminum Extrusion?
Aluminum extrusion is the introduction of a heated aluminum ingot into a container and forcing it at high pressure through the profiled opening of a die which corresponds to the cross-section of the extrusion.
How to change the profile design into a real product?
1. CAD drawings evaluation as per extrusion natures
2. CAD drawings finalized
3. Tooling drawings approved
4. Tooling development
5. Extrusion
6. Off-tool samples for approval
7. Bulk production
8. Quality checking and packing
9. Delivery
